Libuv in Node.js: Asynchronous I/O on Linux, macOS, and Windows

1. What is Libuv?

Libuv is an open-source library designed to provide asynchronous I/O capabilities in Node.js. It supports features such as:

• Event Loop: Manages I/O tasks and ensures they do not block the main thread.
• Cross-Platform Support: Provides a unified API for different operating systems such as Linux, macOS, and Windows.

II. How Libuv Handles I/O in Node.js

Libuv’s role in managing I/O operations in Node.js involves the following steps:

• Receiving Requests: When a request from a client arrives at the server, libuv adds the request to the event loop.
• Performing I/O: Libuv calls asynchronous I/O functions without blocking the main loop. It sends requests to the operating system to perform operations like reading files or accessing databases.
• Callback: When the I/O operation is complete, the callback is invoked to process the result and send a response back to the client.

This process allows Node.js applications to handle multiple tasks efficiently, ensuring high performance even under heavy loads.

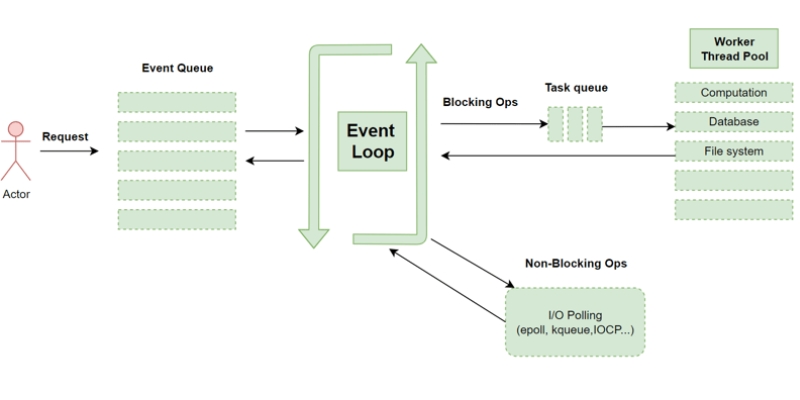

III. Callback Processing in the Event Loop

When the operating system signals that an I/O task is complete, libuv performs the following steps:

• Adding Callback to Task Queue: Libuv adds the corresponding callback to the task queue for processing after the event loop completes its current tasks.
• Processing Callback: The event loop checks the task queue. If there are any callbacks in the queue, they are retrieved and executed.
• Continuing Processing: After the callback completes, the event loop returns to check the queue and repeats the process until there are no more callbacks to handle.

IV. Specific Examples of I/O Handling Across Platforms

Libuv adapts its implementation based on the operating system, leveraging different mechanisms to handle I/O efficiently. Below are platform-specific examples:

1. On Linux

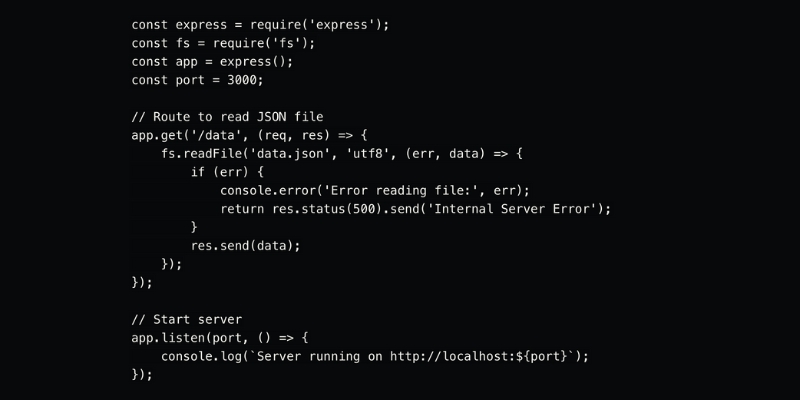

Example: Reading a JSON File

Description:

• When a client sends a GET request to /data, libuv uses epoll, a high-performance I/O mechanism in Linux, to monitor the socket.
• The fs.readFile function is called to read the contents of data.json. Libuv sends this request to the Linux kernel, using epoll to monitor the I/O status without blocking the event loop.
• When the reading operation completes, the kernel sends a signal back to libuv, and the callback is added to the task queue.
• When the event loop continues, it checks the queue and executes the callback, returning the data to the client.

2. On macOS

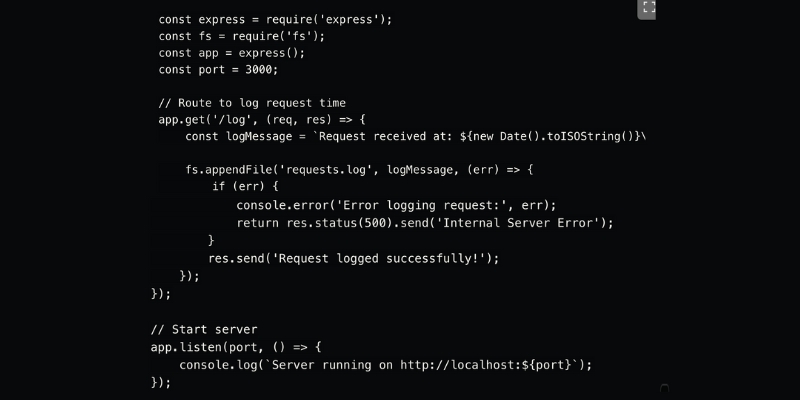

Example: Logging Request Time

Description:

• When a client sends a request to /log, libuv uses kqueue to monitor events from the socket.
• The fs.appendFile function is called to write the time the request was received into requests.log. Libuv sends this request to the macOS kernel through kqueue, allowing it to monitor the I/O event without blocking the main loop.
• When the logging operation completes, the kernel notifies libuv, and the callback is added to the task queue.
• The event loop continues to check the queue and executes the callback to notify the client of the result.

3. On Windows

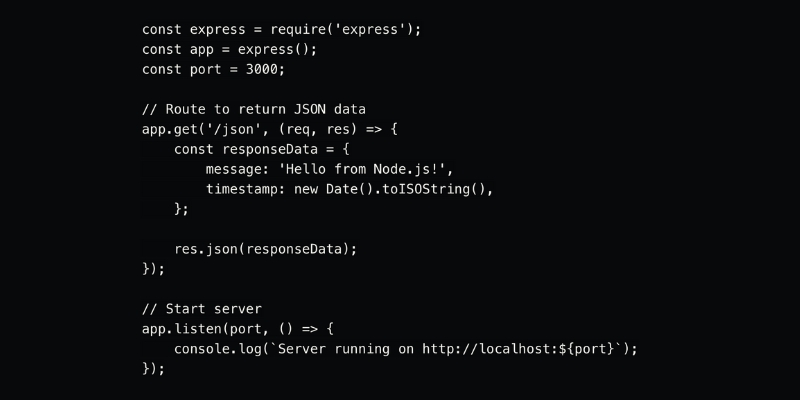

Example: Returning JSON Data

Description:

• When the GET request to /json is sent to the server, libuv uses I/O Completion Ports (IOCP) to manage the socket connections.
• The server returns a JSON object. Libuv performs this operation through IOCP, allowing the Windows kernel to notify libuv when the data is ready to send.
• When the operation is complete, libuv adds the callback to the task queue for later processing.
• The event loop continues its work, checking the queue and executing the callback to send the response back to the client.

V. Conclusion

Libuv plays a pivotal role in making Node.js a high-performance platform by efficiently handling asynchronous I/O operations across various operating systems. Whether it’s leveraging epoll on Linux, kqueue on macOS, or IOCP on Windows, libuv ensures seamless task execution through its event loop. Understanding libuv’s inner workings not only helps in building robust Node.js applications but also provides insights into optimizing I/O-heavy workloads.
